Model No.: TR-01
Material: High strength mild steel
Size:60x60x60inch,1524x1524x1524mm
Finishing: Powder coated, color: blue or orange
Load capacity: 1100kg
Stacking nos.: 5layers (loading)
MOQ: 280pcs （1x40'HQ container）
Material: High strength mild steel
Size:60x60x60inch,1524x1524x1524mm
Finishing: Powder coated, color: blue or orange
Load capacity: 1100kg
Stacking nos.: 5layers (loading)
MOQ: 280pcs （1x40'HQ container）
Products Specification:

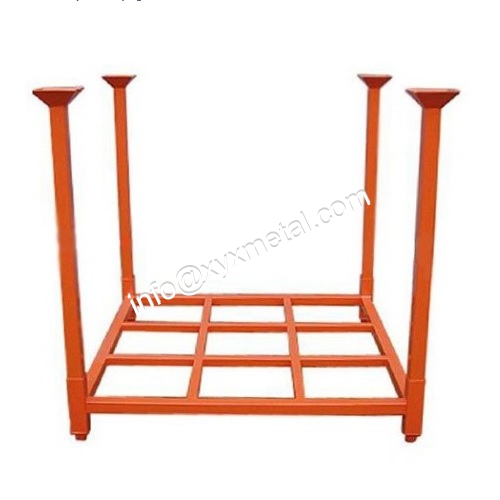

Passenger tire rack, also named stacking tire rack or PCR tire rack. It is tire rack for passenger tire or light SUV tires. This tire racks is stacked design and their posts can be removed, they are widely using in warehouse and logistic center and so on. This stacking tire racks are made of high strength mild steel with powder coated finishing. Usually, the color of this PCR tire rack is orange or blue, the color can be customized. The size 60” x 60” is designed to hold 4 or 5 stacks of 7 or 8tires, depending on tire diameter and width. This passenger tire racks stacking capacity is 5 tiers when they are open, 20 tiers when they are closed.
Specifications
|
Dimensions(W x D x H) |
60" x 60" x 60" |
|
Finishing |
Powder coated |
|
Tire capacity |
28 to 40 pieces |
|
Load capacity |
2400lb. / 1100KG |
|
Max stacked (open) |
5 layers |
|
Max stacked (closed) |
20 layers |
|
Unit N.W |
115lb. / 52KG |
|
Color |
Orange, blue or customized |
Product Advantage
A.Welded steel structure, strong and durable
B.Demounted, easy to assemble
C.Can be stacking 5 high, folded to store and save space
D.Load capacity up to 1100kg
E.Improve product visibility

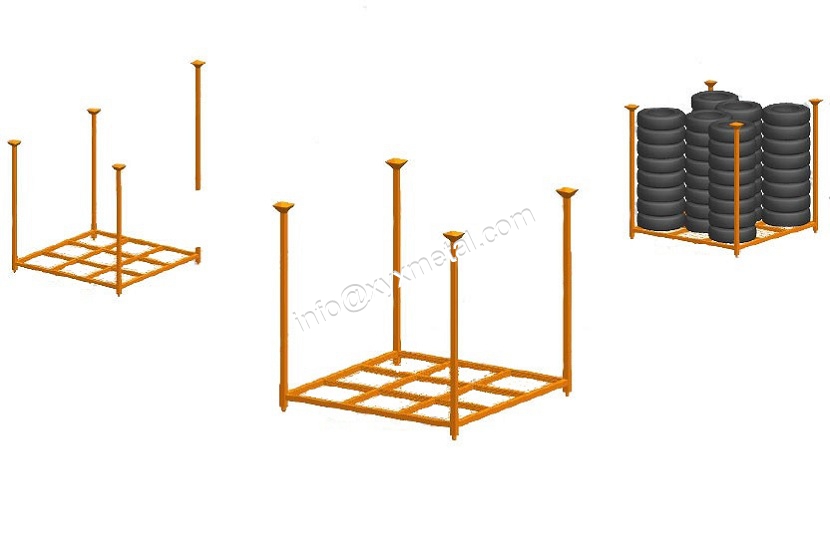

F.Four removable upright to save space
Details information
1.Model No: TR-01
2.Size: 60” x 60”, 1524 x 1524mm
3.Lead time: 25-30 days for two 40’HQ container.
4.260pieces for a 40’HQ container
5.MOQ: 280 pieces
6.Shipping port: Qingdao, China
7.Trade term: FOB or CIF
8.Payment term: 30% TT deposit, 70% TT balance against before loading.

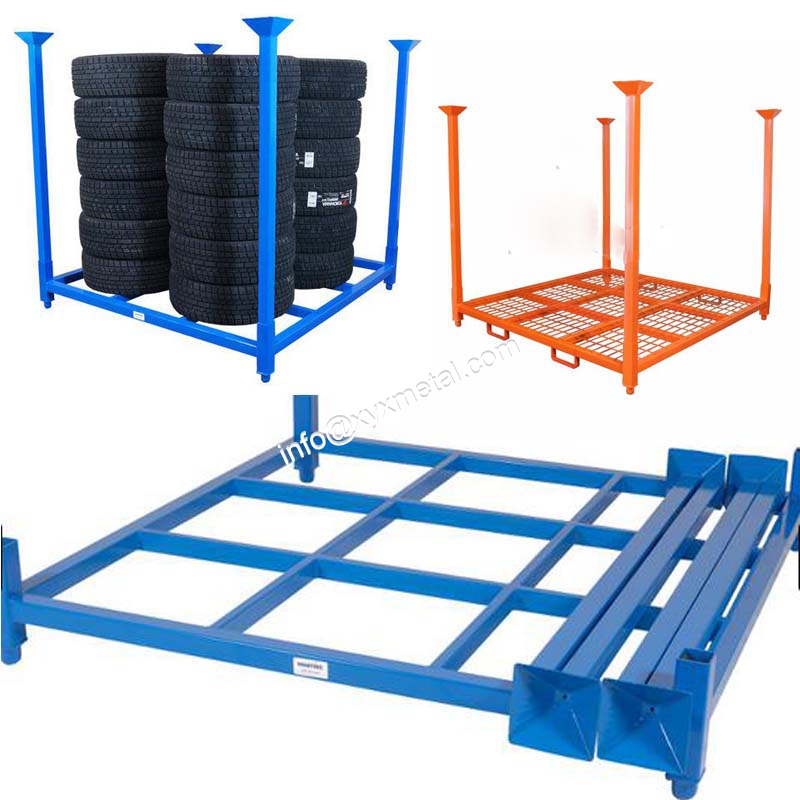

9.Options: With wire mesh or(and) forklift pocket
10.Everything can be customized.

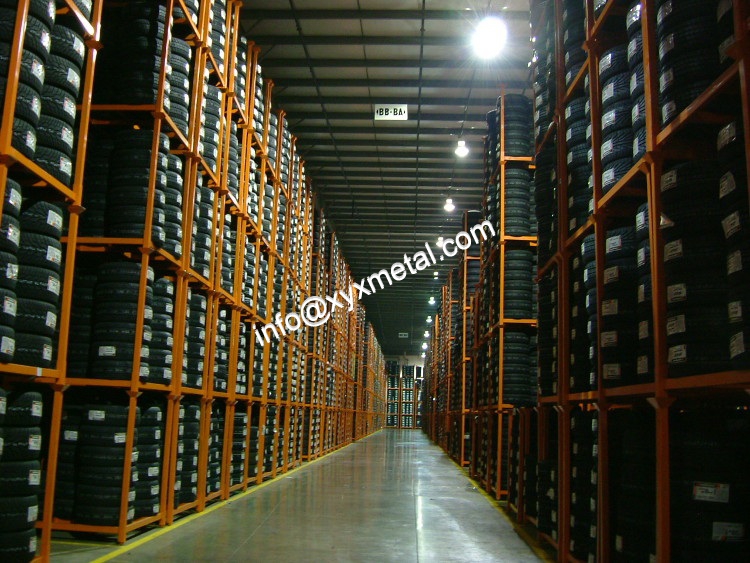

The passenger and light truck stacking rack can be used for stacked storage of all types of passenger and light truck tires. The 60"X60" deck is designed to hold 4 or 5 stacks of 7 or 8 tires, depending on tires diameter. For tires measuring 16" and under, 5 stacks can be stored per pallet, and for tires measuring 17" and over, 4 stacks. This is one of the most economical tire storage systems, particularly in terms of initial outlay. It is also the most popular storage system in the United States. In addition, this molular rack system can be used to meet a number of other(stack rack) warehousing requirements. Please refer to follows pictures when the tire rack using in warehouse.
